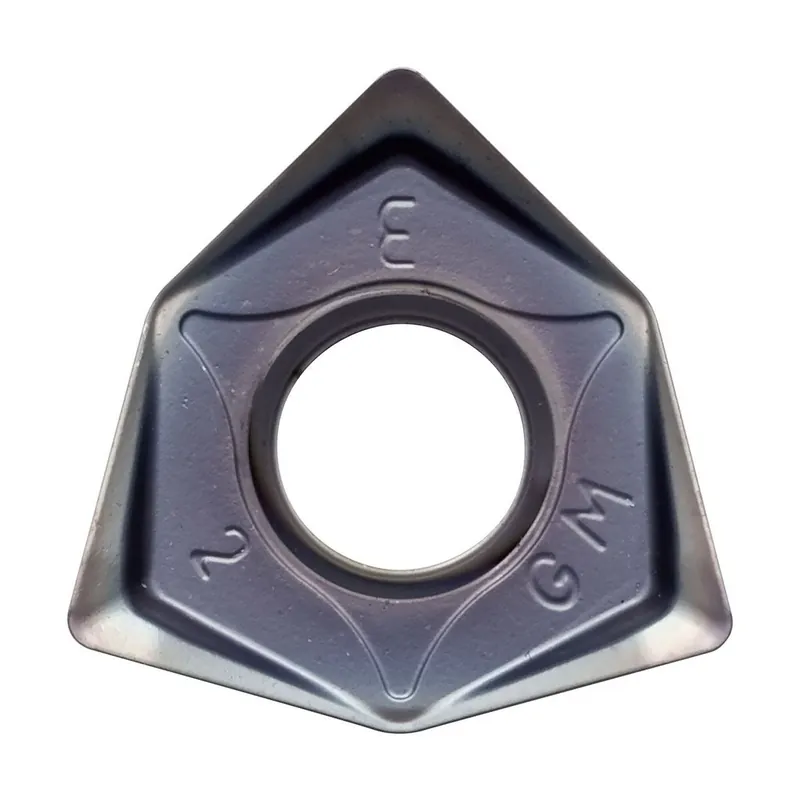

Carbide Milling Insert – WNMU080604EN-GM PR1510 Sprawdź teraz

Opis

Opis:

Carbide Milling Insert WNMU080604EN-GM PR1510

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
RE (GTC – Corner radius): 0.4 mm
IFS (GTC – Insert mounting style code): 3
Corner radius/chamfer: 4
D1 (GTC – Fixing hole diameter): 6.2 mm
S (GTC – Insert thickness): 6.65 mm
IC (GTC – Inscribed circle diameter): 14.02 mm
EPSR (GTC – Insert included angle): 80 Degree
Size: 806
Chip breaker: GM
CBMD (GTC – Chip breaker manufacturers designation): GM
TC (GTC – Tolerance class insert): M
COATING (GTC – Coating): MEGACOAT NANO
HAND (GTC – Insert hand): N
Grade: PR1510
Description: WNMU
