Carbide Milling Insert – SOMT100420ER-FL PR1525 Tani

Opis

Opis:

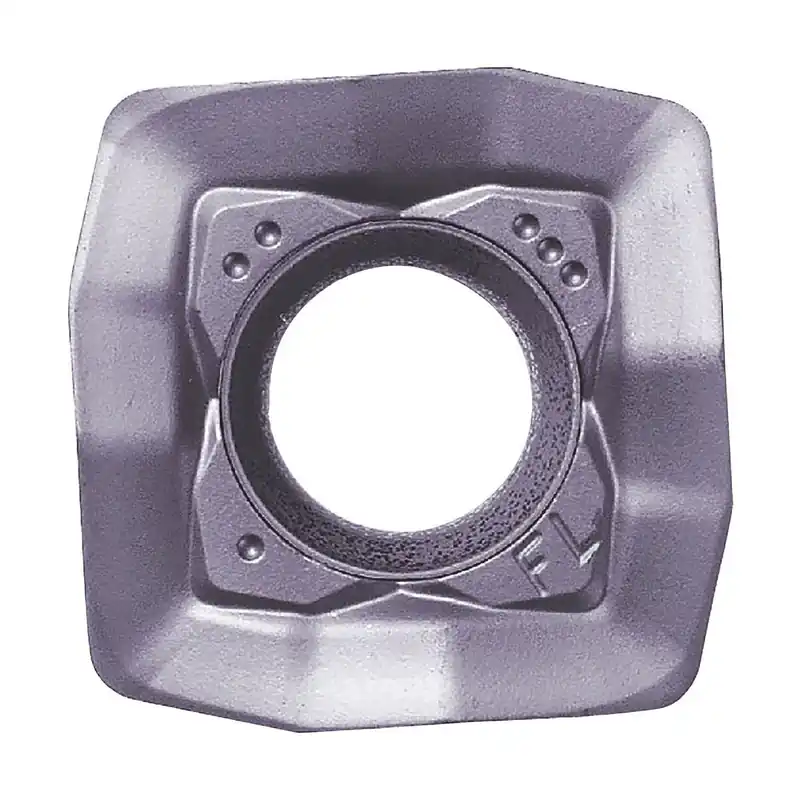

Carbide Milling Insert SOMT100420ER-FL PR1525

Cecha szcz.:

BCH (GTC – Corner chamfer length): 1.5 mm
IFS (GTC – Insert mounting style code): 3
S (GTC – Insert thickness): 4.58 mm
D1 (GTC – Fixing hole diameter): 4.6 mm
IC (GTC – Inscribed circle diameter): 10.3 mm
L (GTC – Cutting edge length): 10.3 mm
AN (GTC – Clearance angle major): 16 Degree
KCH (GTC – Corner chamfer angle): 16 Degree
Corner radius/chamfer: 20
EPSR (GTC – Insert included angle): 90 Degree
Size: 1004
Chip breaker: FL
CBMD (GTC – Chip breaker manufacturers designation): FL
TC (GTC – Tolerance class insert): M
COATING (GTC – Coating): MEGACOAT NANO
Grade: PR1525
HAND (GTC – Insert hand): R
Description: SOMT
