Carbide Milling Insert – SDMT060304E-K KW10 Wybór klientów

Opis

Opis:

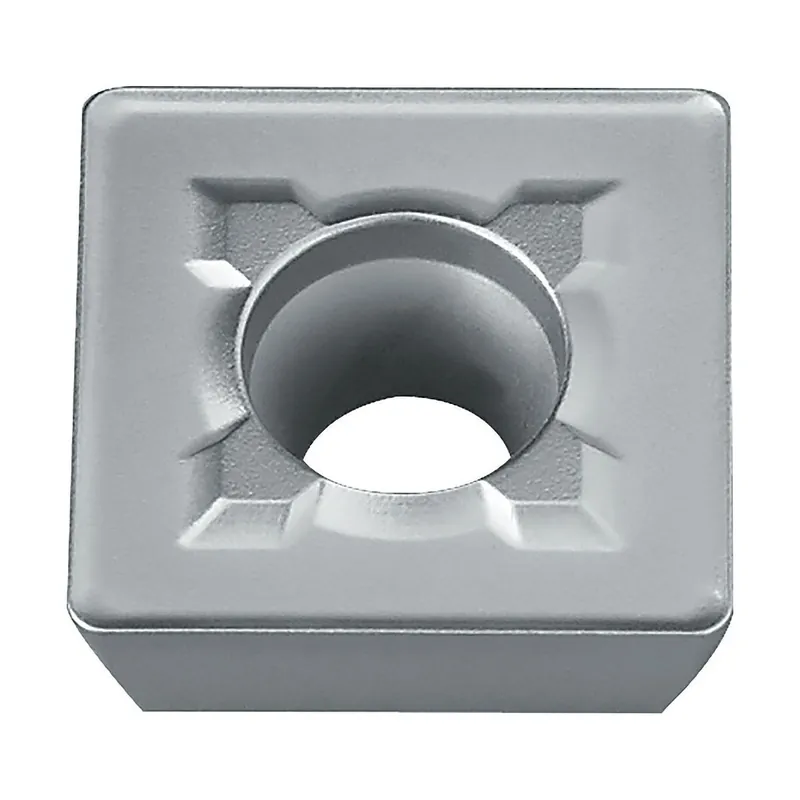

Carbide Milling Insert SDMT060304E-K KW10

Cecha szcz.:

RE (GTC – Corner radius): 0.4 mm
IFS (GTC – Insert mounting style code): 3
S (GTC – Insert thickness): 3.18 mm
Corner radius/chamfer: 4
IC (GTC – Inscribed circle diameter): 6.35 mm
L (GTC – Cutting edge length): 6.35 mm
AN (GTC – Clearance angle major): 15 Degree
EPSR (GTC – Insert included angle): 90 Degree
Size: 603
Chip breaker: K
CBMD (GTC – Chip breaker manufacturers designation): K
Grade: KW10
TC (GTC – Tolerance class insert): M
HAND (GTC – Insert hand): N
Description: SDMT
