Carbide Milling Insert – PNMU1205ANER-SM PR1510 Wybór klientów

Opis

Opis:

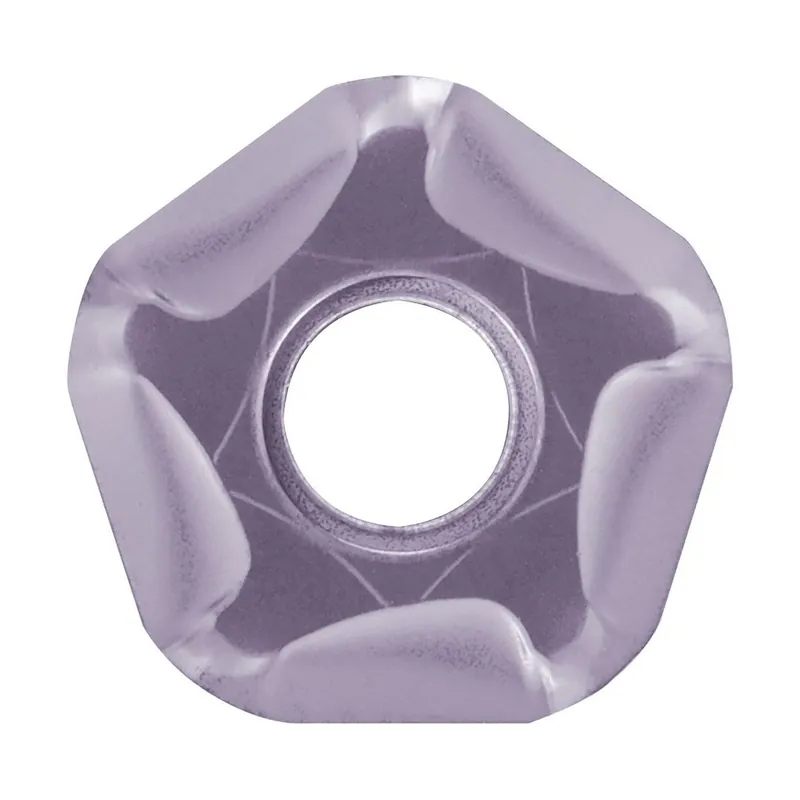

Carbide Milling Insert PNMU1205ANER-SM PR1510

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
BCH (GTC – Corner chamfer length): 2 mm
BS (GTC – Wiper edge length): 2 mm
IFS (GTC – Insert mounting style code): 3
S (GTC – Insert thickness): 5.56 mm
L (GTC – Cutting edge length): 12.38 mm
IC (GTC – Inscribed circle diameter): 17.03 mm
KCH (GTC – Corner chamfer angle): 28.7 Degree
KRINS (GTC – Cutting edge angle major): 43.33 Degree
EPSR (GTC – Insert included angle): 108 Degree
Size: 1205
TC (GTC – Tolerance class insert): M
Description: PNMU
Grade: PR1510
HAND (GTC – Insert hand): R
Chip breaker: SM
CBMD (GTC – Chip breaker manufacturers designation): SM
