Carbide Milling Insert – PNEU1205ANER-GL CA6535 Tylko dziś

Opis

Opis:

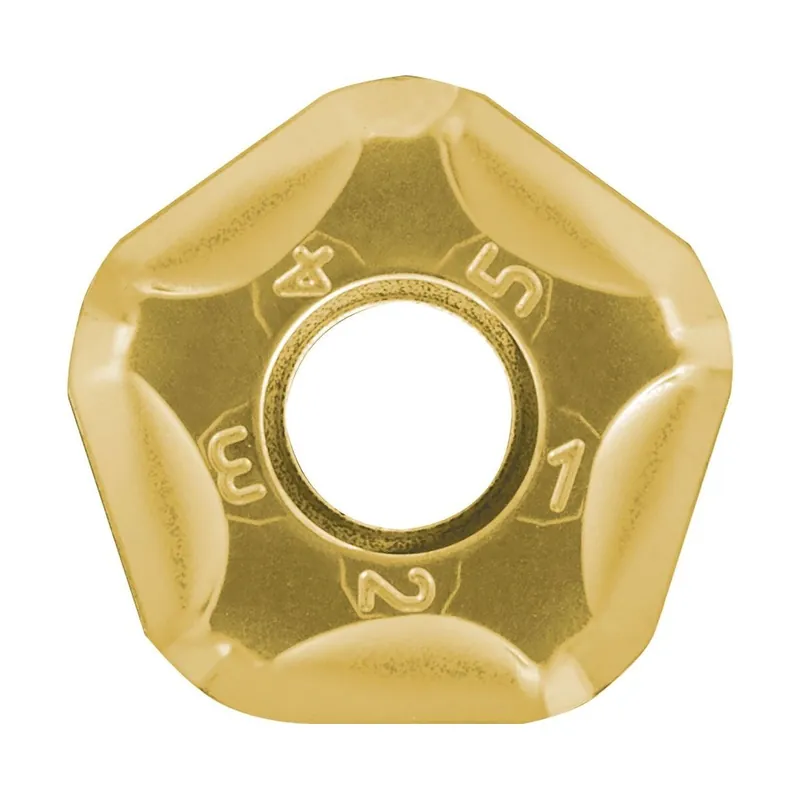

Carbide Milling Insert PNEU1205ANER-GL CA6535

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
BCH (GTC – Corner chamfer length): 2.7 mm
BS (GTC – Wiper edge length): 2.7 mm
IFS (GTC – Insert mounting style code): 3
S (GTC – Insert thickness): 5.56 mm
L (GTC – Cutting edge length): 12.38 mm
IC (GTC – Inscribed circle diameter): 17.03 mm
KCH (GTC – Corner chamfer angle): 27.4 Degree
KRINS (GTC – Cutting edge angle major): 44.5 Degree
EPSR (GTC – Insert included angle): 108 Degree
Size: 1205
Grade: CA6535
TC (GTC – Tolerance class insert): E
Chip breaker: GL
CBMD (GTC – Chip breaker manufacturers designation): GL
Description: PNEU
HAND (GTC – Insert hand): R
