Carbide Grooving Insert – TKF12L100-S PR1225 Ograniczona ilość

Opis

Opis:

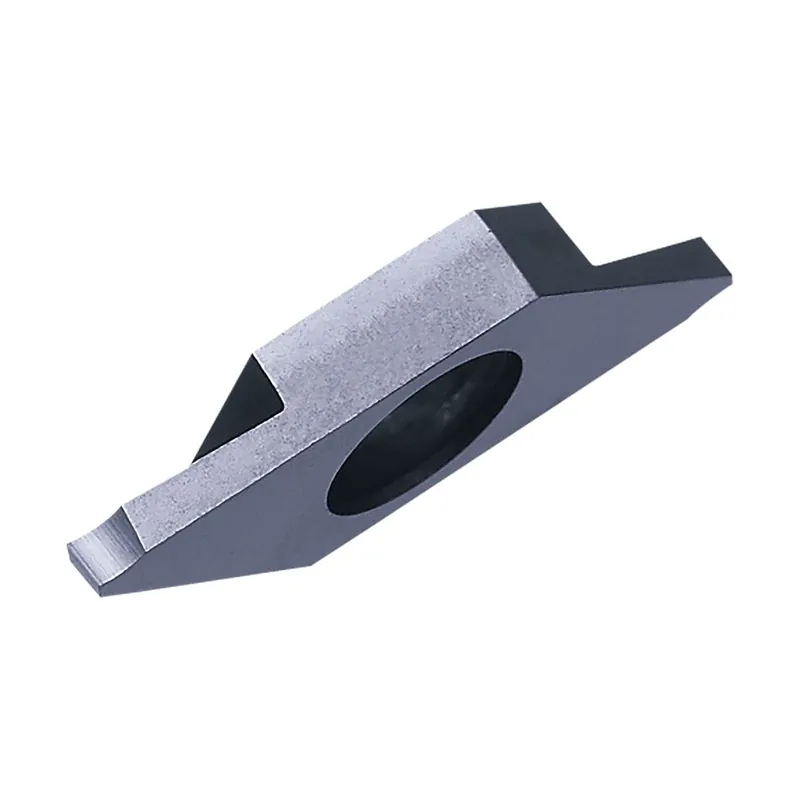

Carbide Grooving Insert TKF12L100-S PR1225

Cecha szcz.:

ANL (GTC – Clearance angle flank left hand): 0 Degree
WT (GTC – Weight of item): 0.004 kg
REL (GTC – Corner radius left hand): 0.03 mm
RER (GTC – Corner radius right hand): 0.03 mm
CW (GTC – Cutting width): 1 mm
PFS (GTC – Profile form): 1
CEDC (GTC – Flute count): 2
ANR (GTC – Clearance angle flank right hand): 5 Degree
AN (GTC – Clearance angle major): 7 Degree
S (GTC – Insert thickness): 8.2 mm
S1 (GTC – Insert thickness total): 8.7 mm
INSL (GTC – Insert length): 21.5 mm
Grooving width: 1,00
CECC (GTC – Cutting edge condition code): F
HAND (GTC – Insert hand): L
COATING (GTC – Coating): MEGACOAT
Grade: PR1225
CBMD (GTC – Chip breaker manufacturers designation): S
TCE (GTC – Tipped cutting edge code): S
Description: TKF
