Carbide Grooving Insert – GER200-100CR GW15 Wyjątkowa oferta

Opis

Opis:

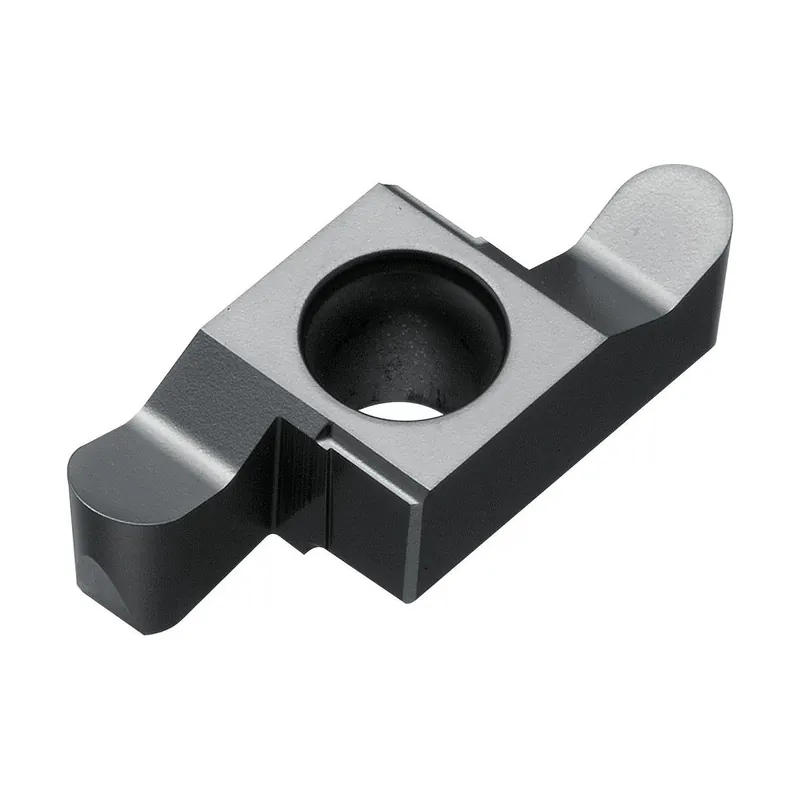

Carbide Grooving Insert GER200-100CR GW15

Cecha szcz.:

WT (GTC – Weight of item): 0.002 kg
PFS (GTC – Profile form): 1
REL (GTC – Corner radius left hand): 1 mm
RER (GTC – Corner radius right hand): 1 mm
ANR (GTC – Clearance angle flank right hand): 2 Degree
AN (GTC – Clearance angle major): 2 Degree
ANL (GTC – Clearance angle flank left hand): 2 Degree
CEDC (GTC – Flute count): 2
CW (GTC – Cutting width): 2 mm
S (GTC – Insert thickness): 3.9 mm
S1 (GTC – Insert thickness total): 4.05 mm
INSL (GTC – Insert length): 11.48 mm
Grooving width: 2,00
CECC (GTC – Cutting edge condition code): F
Description: GER
Grade: GW15
HAND (GTC – Insert hand): R
TCE (GTC – Tipped cutting edge code): S
