Carbide Grooving Insert – GER100-005C PR1225 Tani

Opis

Opis:

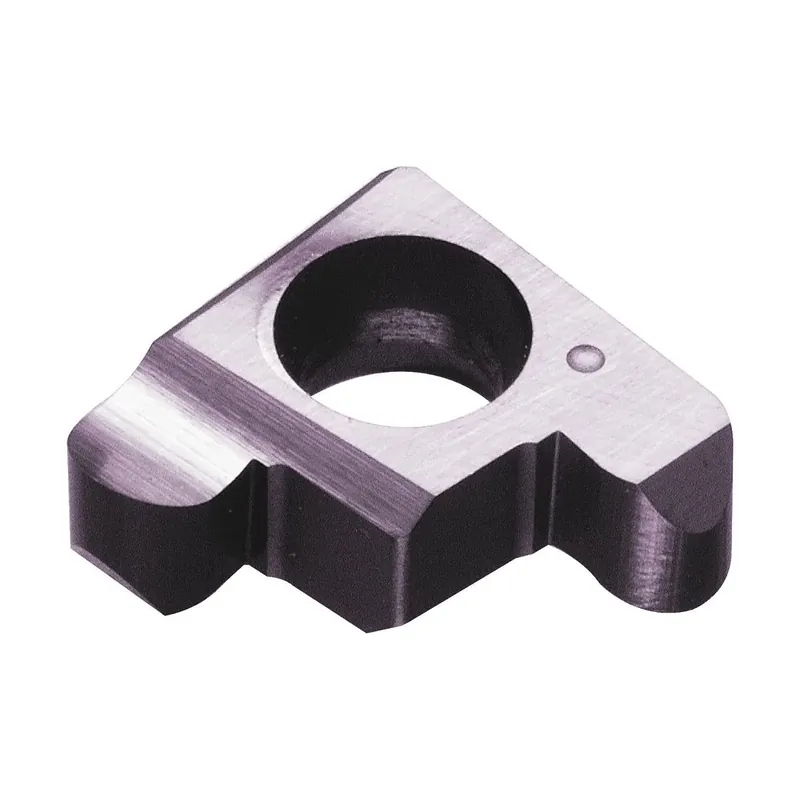

Carbide Grooving Insert GER100-005C PR1225

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
WT (GTC – Weight of item): 0.002 kg
REL (GTC – Corner radius left hand): 0.05 mm
RER (GTC – Corner radius right hand): 0.05 mm
CW (GTC – Cutting width): 1 mm
PFS (GTC – Profile form): 1
ANR (GTC – Clearance angle flank right hand): 2 Degree
ANL (GTC – Clearance angle flank left hand): 2 Degree
CEDC (GTC – Flute count): 2
S (GTC – Insert thickness): 3.9 mm
S1 (GTC – Insert thickness total): 4.05 mm
INSL (GTC – Insert length): 11.48 mm
Grooving width: 1,00
CECC (GTC – Cutting edge condition code): E
Description: GER
COATING (GTC – Coating): MEGACOAT
Grade: PR1225
HAND (GTC – Insert hand): R
TCE (GTC – Tipped cutting edge code): S
