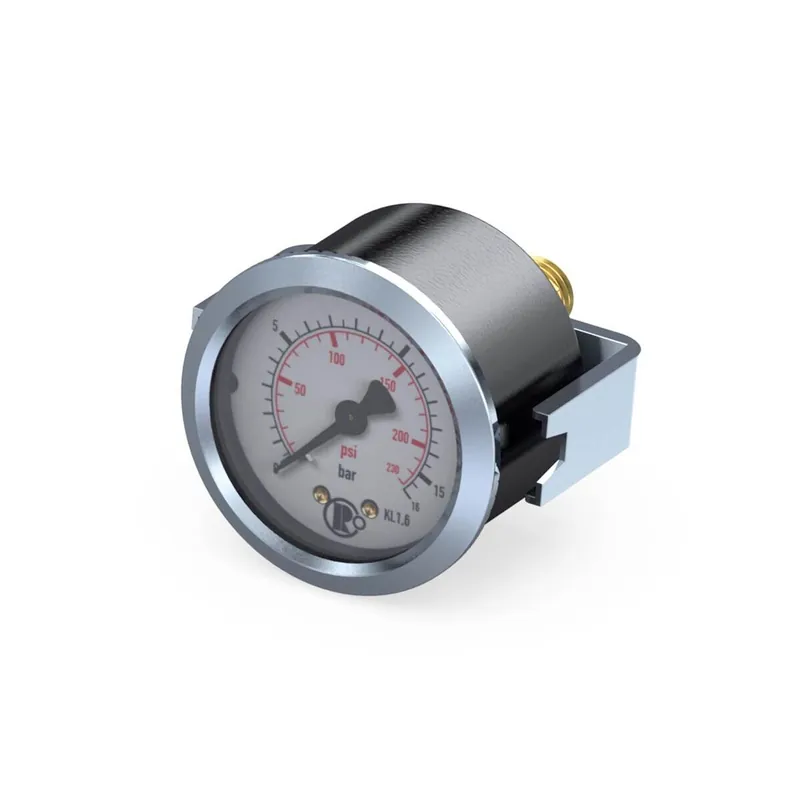

Bezpieczna płatność Standard pressure gauge, triangle front ring, G 1/8, 0 – 10 bar

Opis

Opis:

Standard pressure gauge, triangle front ring, Connection, rear, centric, G 1/8, Goods class 2.5, Measurement range 0 – 10 bar, Ø40

Cecha szcz.:

• Casing: Sheet metal
• Thread: G 1/8 male
• WIKA type: 111.12
• measuring element: copper alloy
• Quality class: 2.5
• clockwork: copper alloy
• Container diameter: 40 mm
• Visor: Synthetic material
• connection position: rear, central
• Maximum measuring range in bar: 10 bar
• Maximum measuring range psi: 145
• Measuring range min. bar: 0 bar
• Measuring range min. psi: 0
• Maximum medium temperature: 60 °C
• Medium temperature min.: -20 °C
• Maximum ambient temperature: 60 °C
• Ambient temperature min.: -20 °C
• Scale division value in the bar range: 0.5 bar
• Lower / upper measuring range limit: excess pressure
