Bezpieczna płatność Carbide Turning Insert – TNMG160404MS SW05

Opis

Opis:

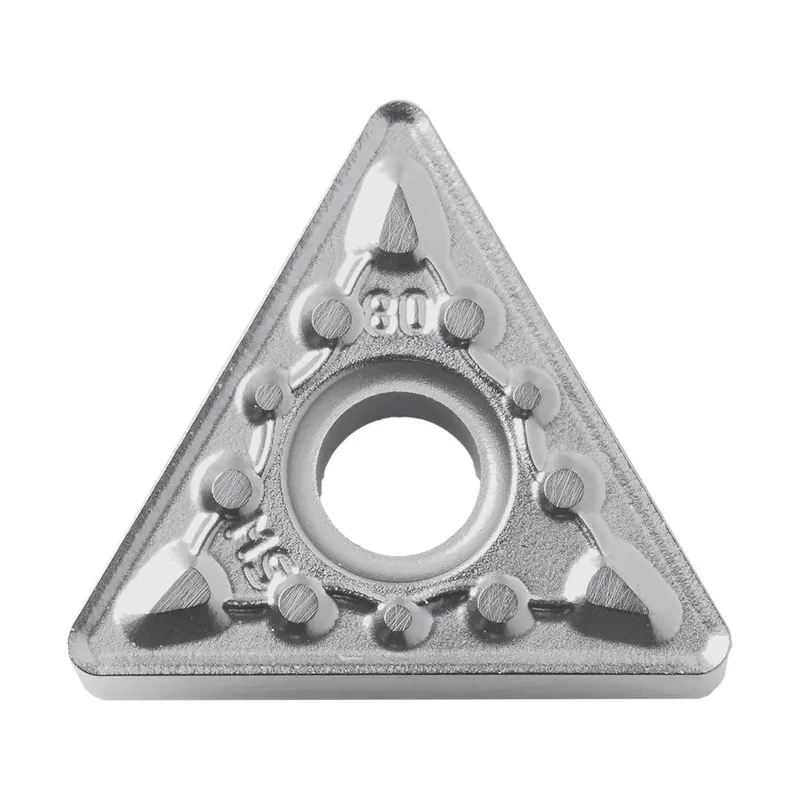

Carbide Turning Insert TNMG160404MS SW05

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
RE (GTC – Corner radius): 0.4 mm
IFS (GTC – Insert mounting style code): 2
Corner radius (RE): 4
S (GTC – Insert thickness): 4.76 mm
IC (GTC – Inscribed circle diameter): 9.525 mm
L (GTC – Cutting edge length): 16.498 mm
EPSR (GTC – Insert included angle): 60 Degree
Size: 1604
TC (GTC – Tolerance class insert): M
Chip breaker: MS
HAND (GTC – Insert hand): N
Grade: SW05
Description: TNMG
