BALL ANVIL, PAIR, CARBIDE 0.5 TO 7MM – SPECIFY SIZE ON ORDER Zniżka

Opis

Wykonanie:

• For gear measurement and for special tasks
• Carbide measuring balls

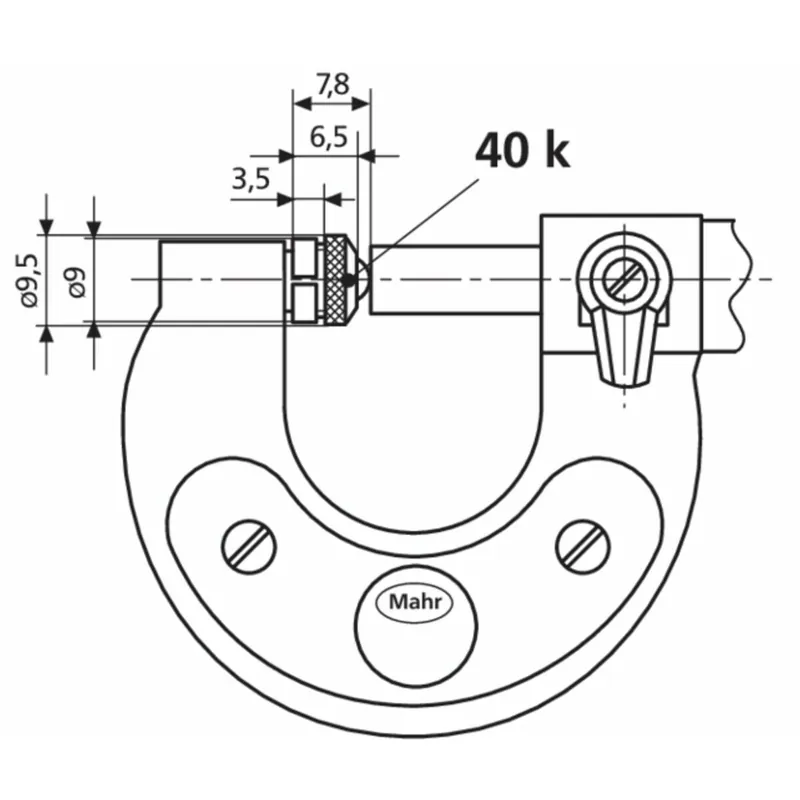

• Cylindrical mounting shank with circlip for mounting in the mounting bore of the micrometer or indicating snap gage

Opis:

Ball contact, Measuring contact ball diameter mm , L = 15.5mm, ø = 3,5 mm

Cecha szcz.:

• Calibration type: Uncalibrated
• Product group name: Marameter
• Product name: Ball measuring insert
• Material Measuring surface: Carbide
• Thread pitch in mm (proxy): false
• Thread pitch in TPI (proxy): false
• Product group name: Indicating measuring devices
• Mounting hole: 3,5
• Measuring contact ball diameter Intermediate dimension: 0.5 – 7.0 mm
• Length (mm): 15.5 mm
• Manufacturing tolerance +/-: 2 µm
