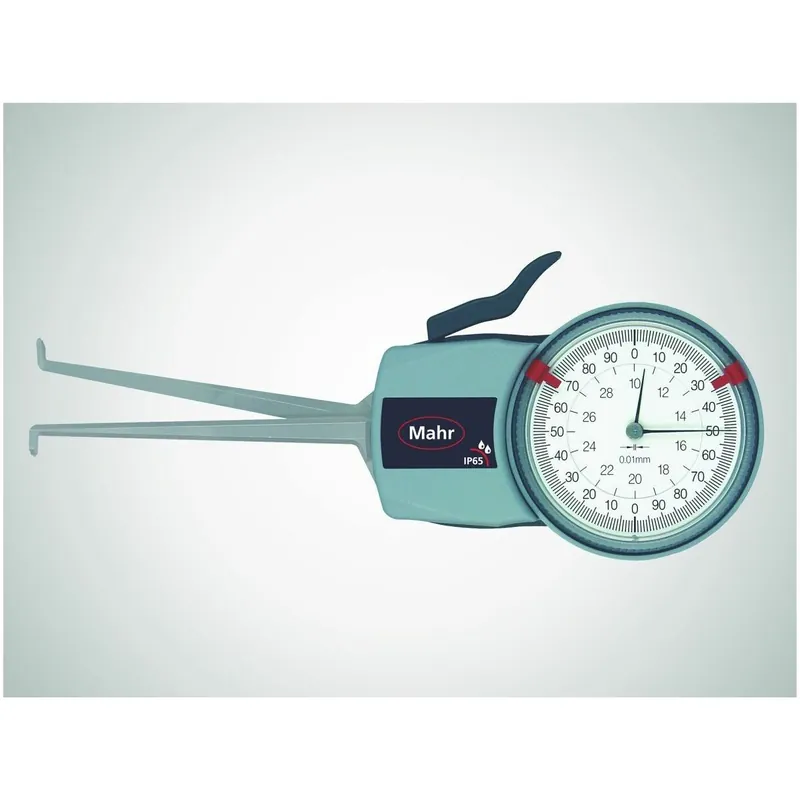

838 TI INTERNAL MEASUREMENT GAGE, 5-15 MM Nowy

Opis

Wykonanie:

• Contact points made of carbide
• Absolute measuring instrument
• Easy-to-read tolerance markers

Opis:

Inside caliper Marameter 838 TI Measuring range: 5 – 15

• Scale interval_mm: 0.005 mm
• Measuring depth mm: 35

Scope of delivery: Test report

Cecha szcz.:

• Application: For measuring holes and internal grooves Very handy
• Calibration type: Uncalibrated
• Product group name: Marameter
• Product name: Inside probe
• Product group name: Indicating measuring devices
• Product type: 838 TI
• Measuring range: 5 – 15 mm
• Measuring force (text): 0.8 – 1.2
• Dimension L: 35 mm
• Measuring depth mm: 35 mm
• Dimension Hb: 2.5 mm
• Dimension Hf: 2.5 mm
• Measuring contact length (movable) mm: 2.5 mm
• Measuring contact length (fixed) mm: 2.5 mm
• Dimension A: 2.3 mm
• Slot depth: 2.3 mm
• Dimension B: 0.80 mm
• Slot width: 0.8 mm
• Dimension D: 0.6 mm
• Measuring contact ball diameter mm: 0.6 mm
• Error limit (mm): 0.015 mm
• Graduation_mm: 0.005
• Repeatability mm: 0.005 mm
