827 B 17 SUPPORT ARM with 8 mm mounting hole &amp, fine adjustment Hit sprzedaży

Opis

Wykonanie:

• Support arm with fine adjustment
• Rugged construction for exceptionally high bending resistance
• Locked against rotation and height adjustable via rack
• Mounting hole 8 mm

Opis:

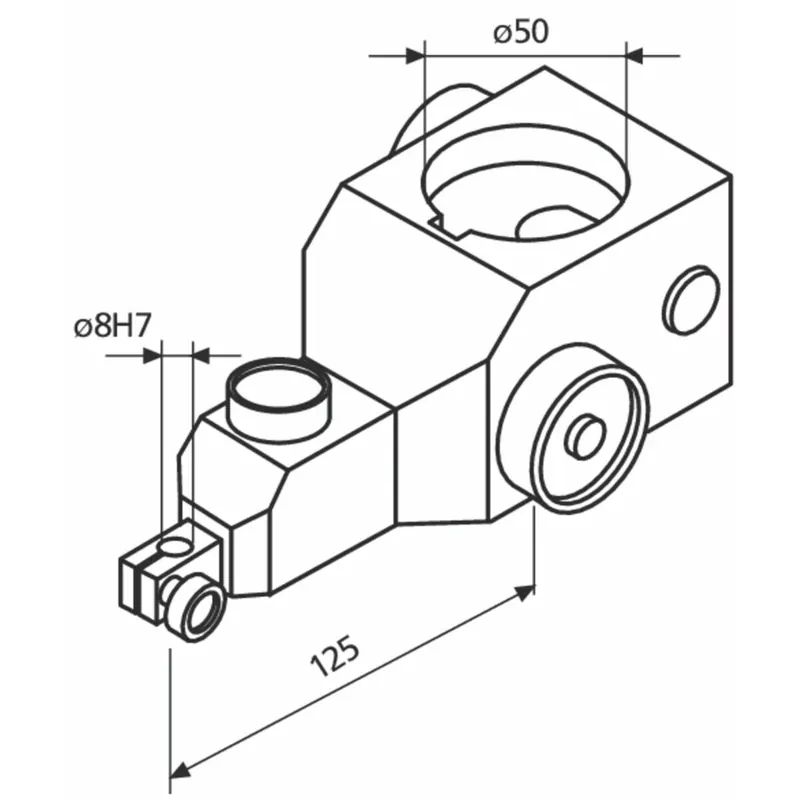

827 b 17 Extension arm

• Take-up bore: 8H
• Fine adjustment

Cecha szcz.:

• Calibration type: Uncalibrated
• Product group name: Measuring stages, measuring stands, concentricity testers
• Product group name: MarStand
• Product name: Extension arm
• Mounting hole: 8H7
• Product type: 827 b 17
• Projection (max.): 125 mm
