Opis
Wykonanie:
- High-contrast dial face, sealed with O-ring
- Mineral glass viewing panel for best protection:
– against cracking, scratching or damage caused by hot shavings
– optimum resistance to solvents
- Matt chrome-plated protective casing with three integrated dovetail guide rails
- Shockproof measuring mechanism
- Anti-magnetic model
- Automatic adjustment to the contacting direction ensuring infallible readings
- Ball bearing mounted double lever
- Friction clutch overload protection
Opis:
– against cracking, scratching or damage caused by hot shavings
– optimum resistance to solvents
Feeler lever gauge MarTest 801 SRM
- Factory standard measuring range: ± .008″
- cale division value inch: .0001”
Scope of delivery: Case, operating instructions, key for changing the measuring inserts, measuring insert ø 2 mm, clamping shank 800a3/8
Cecha szcz.:
- Calibration type: Uncalibrated
- Application: Measurement of concentricity, axial run-out, parallelism and flatness deviations Centering of shafts or bores Parallel or right-angled alignment of workpieces
- Product group name: MarTest
- Dial colour: Green
- Product group name: Lever gauges and edge finders
- Product name: Sensing lever measuring device
- Product type: 801 SRM
- Numbering scale blade: 4-0-4
- Scale diameter inch (text): 1.5″
- Measuring range of feeler gauge, fine pointer, probe inch: ± .008″
- Pointer rotation in inch (text): .008″
- Total deviation span fges in inch (text): .0002″
- Deviation span fe in inch (text): .00012″
- Measuring value reversal span fu in inch (text): .00012″
- Repeatability fw in inch (text): .0001″
- Partial measuring span ft in inch (text): .00008″

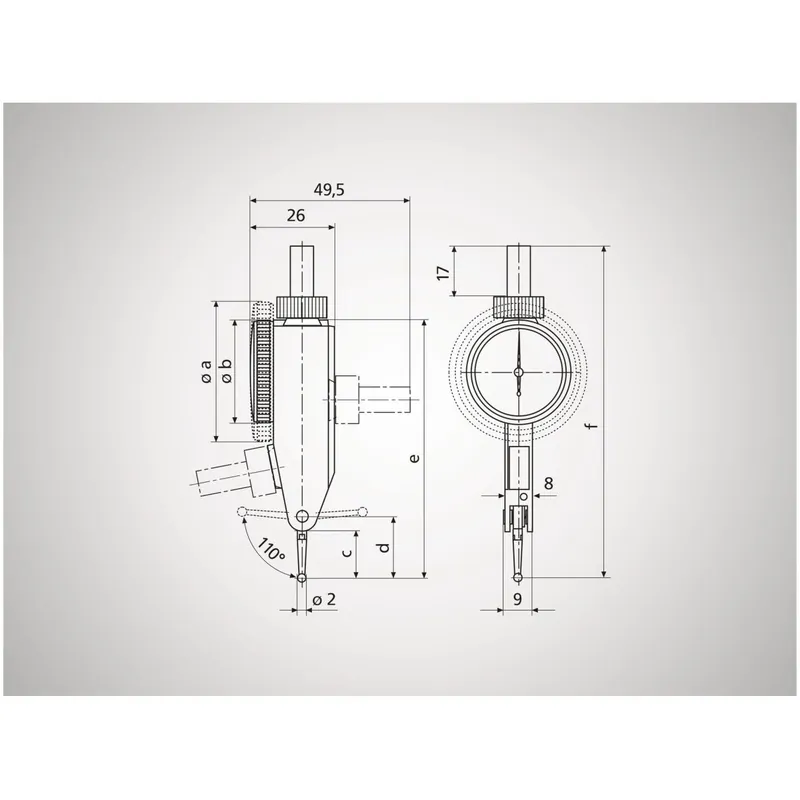

- Remark Dimensions: * 800 SGM, 801 SGM, 801 SGE, 800 SRM ; ** 800 SM, 801 SM ; *** 800 SGE
- Dimension f in mm: 99 mm
- Dimension e in mm: 75 mm
- Dimension a in mm: 40.5 mm
- Dimension d in mm: 17.8 mm
- Measuring insert length (mm): 14.5 mm
- Dimension c in mm: 13.6 mm
- Measuring force: 0.15 N
Norma:
Factory standard
