Opis
Wykonanie:
Advantages of ceramic:
- For use in metrology rooms as well as harsh workshop environment
- Practical properties: easy to slide, corrosion-free, no need to preserve, lightweight and very scratch-resistant
- Corrosion-resistant. Ceramic is also highly resistant to lyes, acids, oil, grinding water and other aggressive media
- Damage to measuring surfaces from scratches or outbreaks causes no burring. The slide function and dimensional stability are retained
- Extremely wear-resistant. The longest idle periods and highest stability of all gage block materials. Allows for significantly longer gage monitoring intervals
- Coefficient of expansion similar to that of steel. Therefore there are no usage restrictions, in manufacturing or in the laboratory, even in extreme temperature conditions
- Ceramic is antistatic, anti-magnetic and not electrically conductive
Opis:

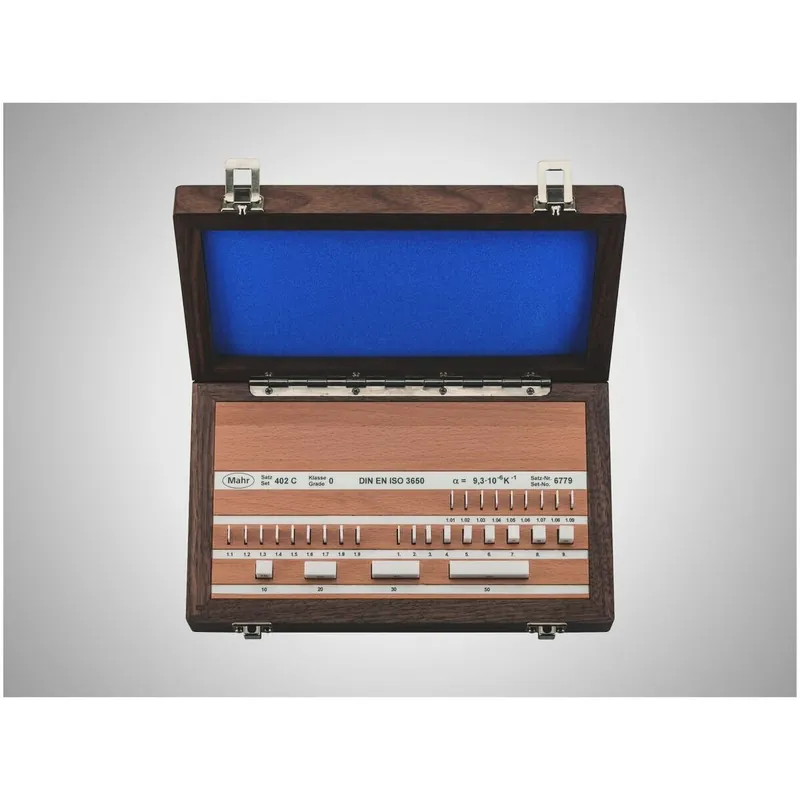

402 C Gauge block set ceramic
- 32 pieces
- Tolerance class: 0
- DIN EN ISO 3650
- Wooden case with clear labelling strips, Mahr calibration certificate
Cecha szcz.:
- Calibration type: Uncalibrated
- Product name: Parallel gauge block set ceramic
- Product group name: Standards and measuring standards
- Product group name: MarGage
- Product type: 402 C
- Tolerance class: 0;
- Table Nominal dimensions Final dimensions: ; ; ; ; Nominal dimensions; Grading; Quantity; ; ; ; mm; mm; ; ; ; 1.001…1.009; 0.001; 9; ; ; 1.01…1.09; 0.01; 9; ; ; 1.1…1.9; 0.1; 9; ; ; 1…9; 1; 9; ; ; 10…100; 10; 10; ; ;
- Quantity per set: 32 Stück
Norma:
DIN EN ISO 3650
