Opis
Wykonanie:
- Large, high contrast dial face
- Shockproof movement
- Zero setting through rotating the dial face and locking screw
- Satin chrome finished line scale
- Locking screw above
- Measuring surfaces made of steel
- Measuring blade for inside measurements
- Slide and beam made of hardened stainless steel
- Step measuring function
- Raised guideway for the protection of the scale
Opis:

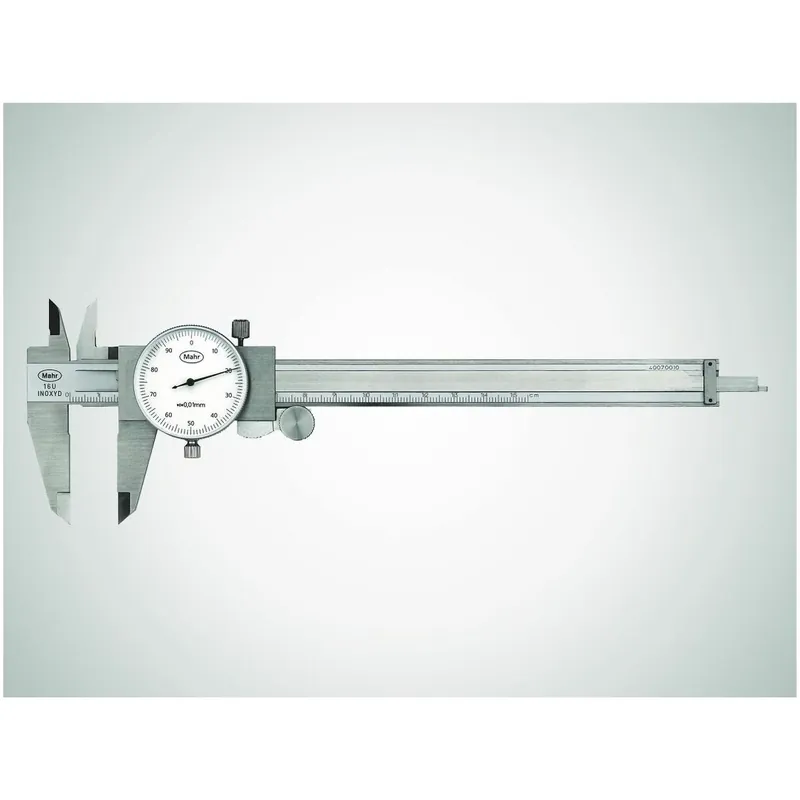

Caliper MarCal 16 U
- Scale graduation_mm: 0.02 mm
Scope of delivery: Case
Cecha szcz.:
- Calibration type: Uncalibrated
- Product name: Caliper gauge
- Friction wheel: true
- Product group name: Caliper gauge
- Product group name: MarCal
- Depth measurement: angular
- Product type: 16 U
- Measuring range: 0 – 150
- Dimension d in mm: 234 mm
- Dimension b in mm: 40 mm
- Dimension c in mm: 16.5 mm
- Dimension e in mm: 16 mm
- Dimension a in mm: 10 mm
- Error limit (mm): 0.04 mm
- Graduation_mm: 0.02
Norma:
ISO 13385-1
